Diesel Forklift

CPCD30

  • Features
  • Parameter

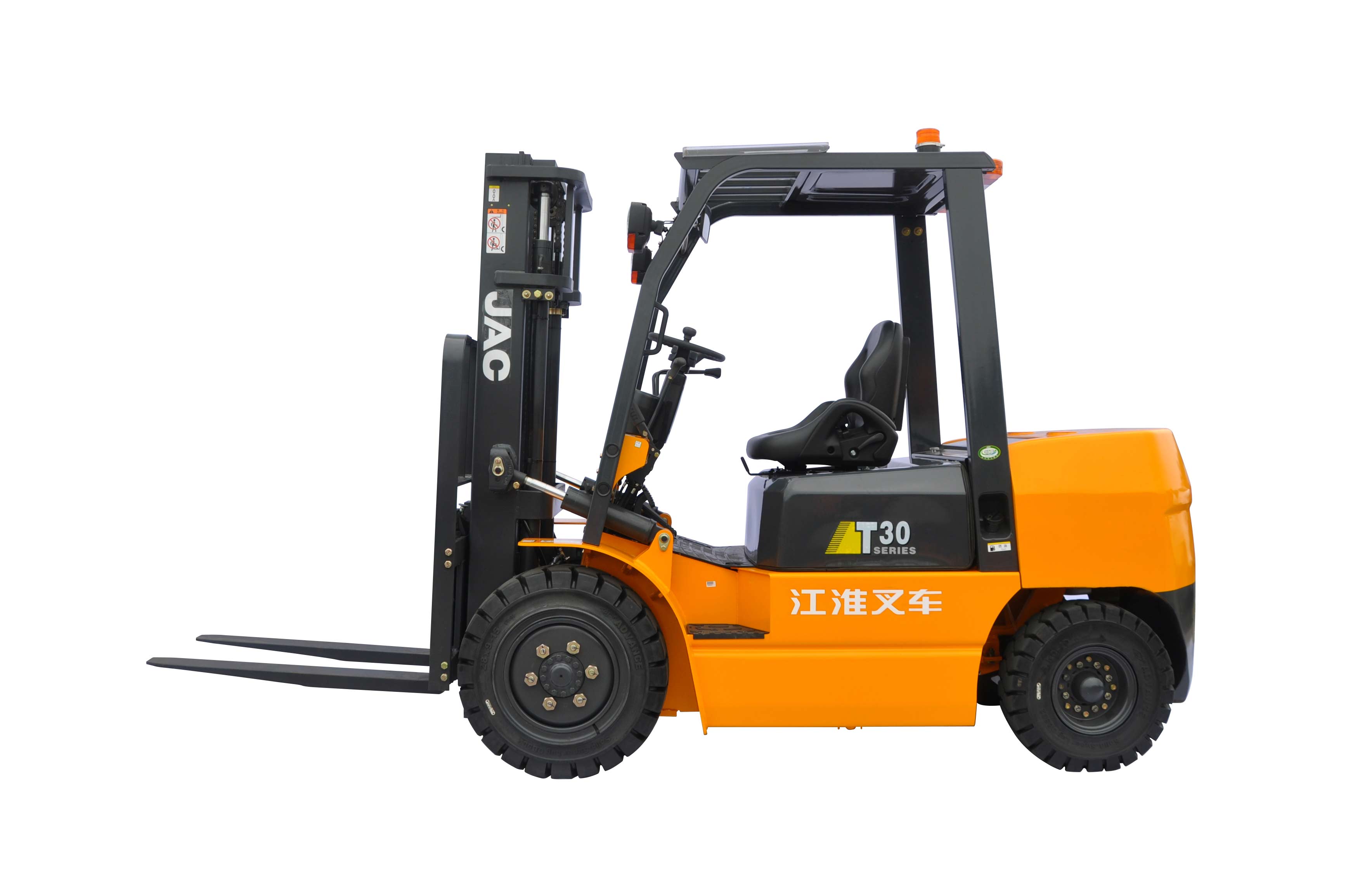

3-3.5T T series Internal Combustion Counterbalance Forklift Truck
CPCD30T CPCD35T
Features  Power type  Diesel
 Rated load kg 3000 3500
 Load center distance mm 500
 Lift height mm 3000
 Free lift height mm 155
Fork size  L×W×T mm 1070×125×45 1070×125×50
 Mast tilt angle  FR/RR 。 8/10
 Minimum turning radius mm 2540 2575
Height of overhead guard mm 2090
Performance Maximum travel speed Full load km/h 19 19
 No load km/h 19 19
Maximum lift speed Full load mm/s 430 485
 No load mm/s 570 450
 Maximum drawbar pull Full load KN 19 28
Dimensions Overall length Without forks mm 2740 2790
Overall width mm 1230
Mast height at maximum lift (with backrest) mm 4260
Mast lowered height mm 2075
