Diesel Forklift

CPCD10H

  • Features
  • Parameter

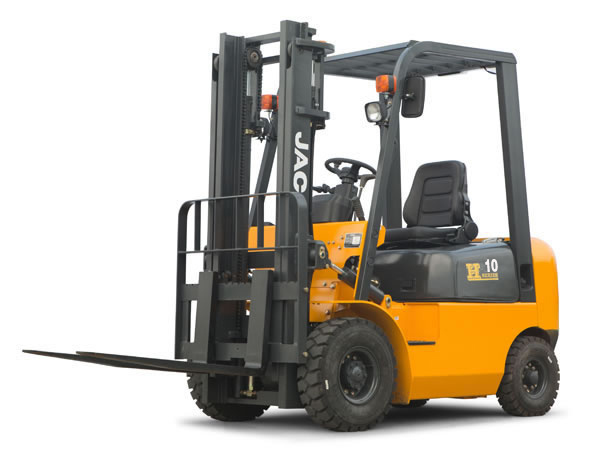

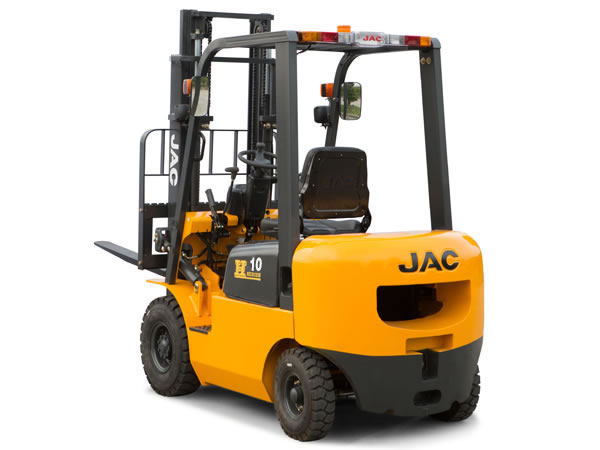

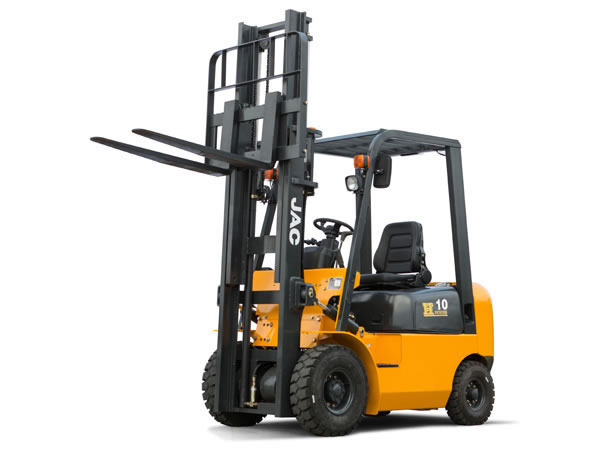

1T Internal Combustion Counterbalance Forklift Truck
CPCD10
Features Powe type Diesel
Rated load kg 1000
Load center distance mm 500
Lift height mm 3000
Free lift height mm 120
Fork size L×W×T mm 920×100×35
Mast tilt angle FR/RR 。 6/12
Minimum turning radius mm 1880
Minimum ground clearance Frame center(no load) mm 115
Mast Bottom（no load） mm 110
Height of overhead guard mm 2060
Performance Maximum travel speed Full load km/h 14.6
No load km/h 14.8
Maximum lift speed Full load mm/s 510
No load mm/s 555
Maximum drawbar pull Full load KN 12
Maximum gradeability % 20
Dimensions Overall length Without forks mm 2160
Overall width mm 1080
Mast height at maximum lift (with backrest) mm 3930
Mast lowered height mm 2010
