Electric Pallet Truck & Electric Stacker

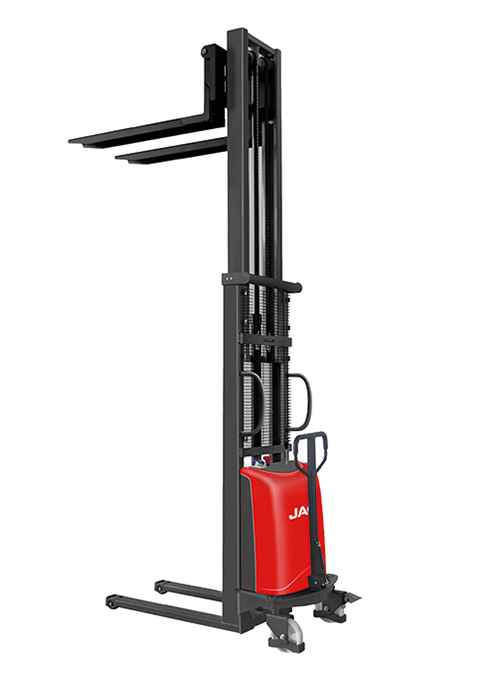

CDD20B Semi-electric Pallet Stacker

  • Features
  • Parameter
Characteristics 1.1 Model CDD20B
1.2 Power unit Semi-electric
1.3 Operation Hand
1.4 Rated traction weight kg 2000
1.5 Load center distance mm 450
1.6 Axle centre to fork face mm 705 700
1.7 Wheel base mm 1190
1.8 Service Weight kg 325 380 455 475
Wheels/Tyres 3.1 Tires Polyurethane
3.2 Driving wheel size/number Φ×w(mm)　 Φ180×50
3.3 Front wheel size/number Φ×w(mm)　 Φ74×70
3.4 Balance wheel size/number Φ×w(mm)　 Φ180×50
3.5 Wheels, number front/rear (x = driven) 1，1/,2
3.6 Drive end mm 648
3.7 Track width mm 390/490
Dimensions 4.1 Lowered mast height mm 2077 1577 1827 2077
4.2 Lifting height mm 1600 2000 2500 3000
4.3 The max. lifting height mm 2077 2567 3067 3567
4.4 Load capacity on Max. height kg 2000 1600 1400 1100
4.5 Lowered fork height mm 85
4.6 Overalllength mm 1600/1800
4.7 Length to fork face mm 700
4.8 Overall width mm 760/964
4.9 Fork dimensions s/e/l (mm) 60/150/900（1100）
4.10 Width of forks mm 550/640
4.11 Min.Ground clearance mm 32
4.12 Aisle width with pallet 1000 x 1200 across forks mm 2250
4.13 Aisle width with pallet 800 x 1200 along forks mm 2240
4.14 Min.Turning radius mm 1350
Performance 5.1 Lifting speed, with/without load mm/s 60/145
5.2 Lowering speed, with/without load mm/s 60/100
5.3 Service brake Mechanical
Drive 6.1 Lift motor rating at S3 15% kW 1.6
6.2 Battery voltage/rated capacity V/Ah 12/120
6.3 Battery weight (± 5%) kg 36
Others 7.1 Noise level at operator‘s ear dB(A) ≤70
